EP 500 - AWC Model


  • Auto weight control function by force measurement
  • Servo driven control for Weight, pre thickness and main thickness
  • Ejection and take off force measurement
  • Auto identification of Fill track
  • 21 CFR part 11 compliance for all function of Panel PC/HMI
  • Electromagnetic clutch in main drive for smooth startup during full compression load and hand wheel side for easy hand rotation during change over
  • Minimal dust generation during compression
  • Individual Servo motor for fill depth control
  • Individual servo motor for compression force control
  • 15'' HMI Panel for Operating the machine

General Specification

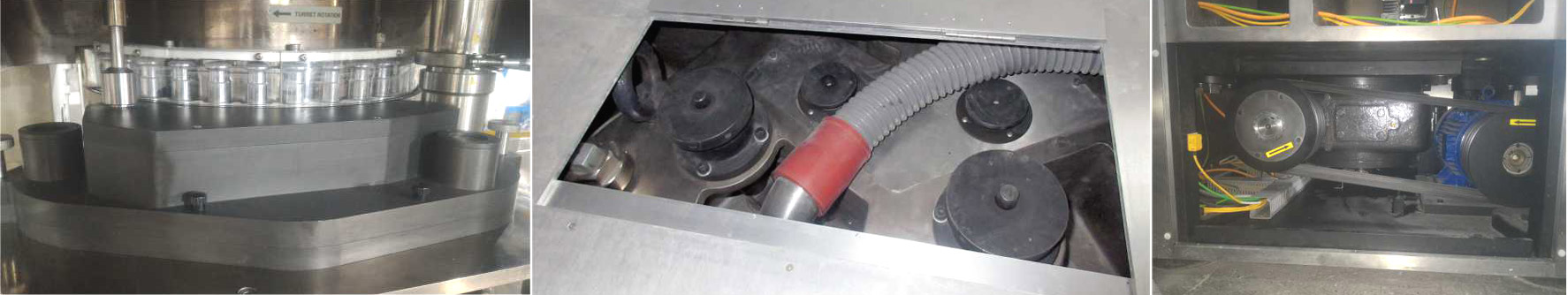

  • Turret with Electroless Nickel Plating for corrosion resistance
  • 3 paddle force feeder drive for distribute and doze the blend at high speeds
  • Compression rollers tonnage capacity of 100kN/10Tons for Pre and 100kN/10Tons for Main
  • Tool-less HOPPER Stainless Steel (SS-316) fitment with tri-clover joint with Powder Control Valve
  • PULL DOWN CAM Alloy Steel (EN353) for reduced dust generation during upper punch entry
  • 'TOOL SAFE' overload system
  • Direct drive to the turret through a High torque reduction gear box
  • Discharge Chute with Good, Sample & Reject Tablet Production
