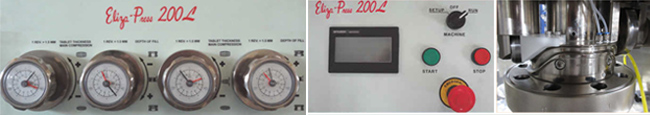

EP 200 L – Bi-Layer Tablet Press


EP 200 L is a Bi-Layer Tablet Compression machine which is a Compact model with a small foot print. It has a sturdy frame structure and aesthetically built and can be foot mounted as well as mounted over a Cabinet/stand. Ideal for product development/small volume production in industry and research institutes/colleges.

  • Machine built in line to the cGMP norms with compression zone and drive zone with physical separation
  • Maximum rated force of 60 Kn and continuous operation at 50 Kn
  • Ideal for product development/small volume production in industry and research institutes/colleges
  • Compatibility to Produce single layer tablets
  • Precision machined turret with ELNP surface treatment providing protection against corrosion/rusting
  • Gravity feed-frames with vacuum suction ports to avoid any mixing of layers
  • Available with Load-cell to measure 1st layer compression force and 2nd layer compression force
  • Upper punch penetration at 1st layer variable from 2.00mm to 10.00mm
  • Main motor of 3HP drives a heavy duty Reduction gearbox with direct turret drive
  • ACVFD for the main motor for speed control
  • CE certified for safety and electrical
  • Auto Weight Control system available with EP 200 L model
  • Equal sized Pre & Main Compression rollers of 60 kN (6 Ton) capacity each
  • Double Paddle Force Feeder with ‘Peek Plate’ with Clockwise & Counter Clockwise rotation of paddles
