ECO VII - AFR Model


  • Kiosk mounted Control 15.0'' Touch screen as Operator Interface with force display for each punch during each rotation.
  • Defective tablet identification by force measurement
  • Compression Force Measurement with Load cell Initial Rejection function enables the tablets to diverted through the gate into rejection chute during every Start & Stop of the Machine
  • Parameters setting like Turret Speed, Force Feeder Speed, Auto Lubrication, Safety Interlocks, Hydraulic Compression and many more

General Specification

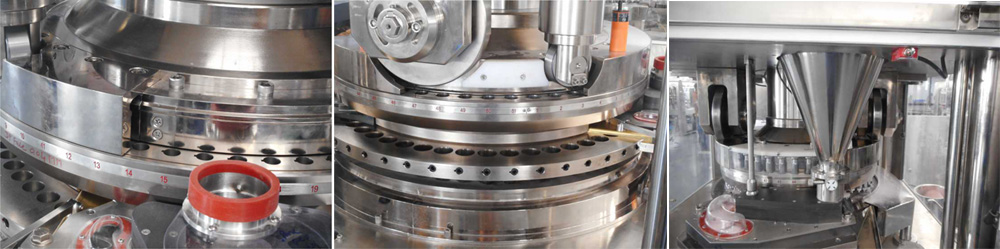

  • Precision machined Electroless Nickel Plated Turret with & lower punch seal
  • Three stage Paddle Force Feeder with Clockwise & Counter Clockwise rotation of paddles
  • Compression rollers tonnage capacity of 100kN/10Tons for Main Compression & 20kN/2Tons for Pre Compression
  • Variable Upper Punch Penetration for main Compression 1.0 to 7.0mm. for Single Layer & 2.0 to 7.5mm for Bi-Layer
  • Double walled Cams design for easy maintenance & change over
  • SS 316 Hopper with Powder Controlling Gate Valve
  • Tablet Parameter Control from side of the machine through Controlling Knobs
  • SS 316 Two Way Discharge Chute for Tablet Production
