• GMP model with 12 station in “Special” tooling
• Electro magnetic clutch for heavy duty application
• ACVF Drive for the main motor
• High torque motor for better tablet compression
• Ideal for Effervescent tablets/Veterinary/Non pharma applications
• Sturdy center pillar construction to withstand high load application
• 40mm diameter round tablet compressed with ease

General Specification

• Turret with Electroless Nickel Plating for corrosion resistance
• Aluminum Hard Anodized Gravity Feeder
• Compression rollers tonnage capacity of 120kN/12Tons
• Variable Upper Punch Penetration 1.5 to 8.0mm
• PULL DOWN CAM Alloy Steel (EN353) for reduced dust generation during upper punch entry
• Turret drive through robust external worm & worm gear system

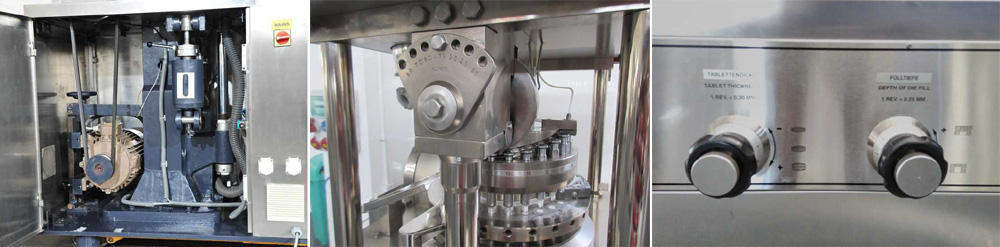

• Tablet Parameter Control from out side of the machine through Dial gauges for Compression & Fill Depth control
• Sturdy center pillar construction to withstand high load application
