ECO III - AFR Model


  • 15.0'' Touch screen as Operator Interface with force display for each punch during each rotation
  • Defective tablet identification by force measurement
  • Compression & Ejection Force Measurement with Load Cell
  • Initial Rejection function enables the tablets to diverted through the gate into rejection chute during every Start & Stop of the Machine

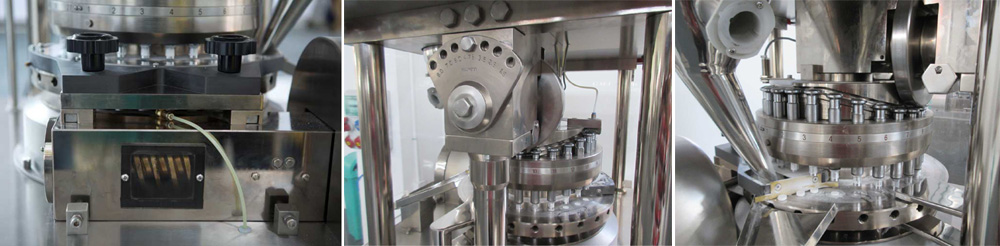

General Specification

  • Precision machined Electroless Nickel Plated Turret with lower punch seal
  • Aluminum Hard Anodized Gravity Feeder
  • Compression rollers tonnage capacity of 100kN/10tons for D & 65kN/6.5Tons B & BB Tooling
  • Variable Upper Punch Penetration 1.5 to 8.0mm
  • PULL DOWN CAM Alloy Steel (EN353) for reduced dust generation during upper punch entry
  • Turret drive through robust external worm & worm gear system
  • Tablet Parameter Control from out side of the machine through Controlling Knobs
  • Sturdy center pillar construction to withstand high load application
