Tablet Compression - ECO Series


Eco II – Single Rotary R & D ECOmpression Press
  • Ideally suited for R & D plants, Pilot scale production
  • Pharmacy colleges, High value low volume products
  • Non Pharma applications
  • Fully cGMP compliant Tablet Press in terms of Design, Metallurgy, Easy Accessibility etc.
  • Turret with Electroless Nickel Plating & can be provided with 'D', 'B' or combination 'D', 'B' & 'BB' Tooling
  • Semi-Direct drive to the Turret through high torque reduction gear box

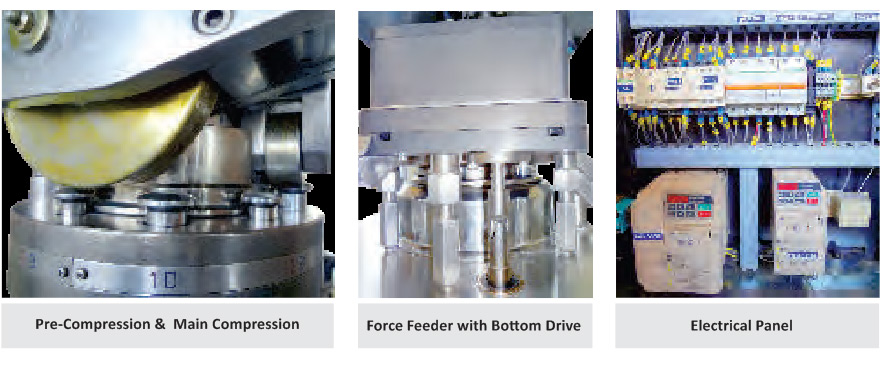

  • Pre & Main Compression rollers of 20 kN (2 Ton) & 60 kN (6Ton) capacity respectively
  • Segmented Cams for easy maintenance & change over for Multi Tooling & Single piece Cam for “D” & “B” Tooling machine
  • Double Paddle Force Feeder for optimum powder filling
  • Main Motor control through AC Variable Frequency Drive & Feeder Motor through fixed pulley system
  • The integrated control panel includes:
    • Turret & Feeder RPM Control
    • Emergency Stop, Main Drive Start / Stop & Force Feeder Start / Stop
    • Trip Indicator & Reset Push Button
